Standard: API 610

Pump type acc. to API610: VS6 - Double casing diffuser vertically suspended multi-stage pumps
Aggregate type: SMVS6

APPLICATION

• Condensate and Condensate Extraction
• Hydrocarbon Booster and Transfer
• Chemical and Petrochemical Transfer
• Brine Injection
• Pipeline Booster
• Crude Oil Loading
• Heater Drain
• Cryogenic Service

RANGE

CAPACITY: 4000 m3/h
PRESSURES: up to 150 bar
TEMPERATURES: from -100 to 350 °C

Standard: API 610

Pump type acc. to API610: VS1 - Wet pit, vertically suspended, single casing diffuser pumps with discharge through the column
Aggregate type: SSVS1

APPLICATION

• Refineries
• Power Generation
• Offshore Crude Oil Loading
• Seawater Lift
• Chemical and Petrochemical Industries
• Pipeline and Transfer Services
• Stormwater and Drainwater Services
• Water Distribution, Cooling, Circulation, etc.

RANGE

CAPACITY: 15000 m3/h
PRESSURES: up to 40 bar
TEMPERATURES: up to 180 °C

Standard: API 610

Pump type acc. to API610: VS4 - Vertically suspended, single casing volute line-shaft-driven sump pumps
Aggregate type: SVS4


APPLICATION

• Petroleum Refineries
• Petrochemical Industries
• Chemical Industries
• Power Stations

RANGE

CAPACITY: 1400 m3/h
PRESSURES: up to 16 bar
TEMPERATURES: up to 320 °C

Standard: API 610

Pump type acc. to API610: Double casing, radially split, multistage between-bearings pumps (barrel pumps)
Aggregate type: SBB5
  　

APPLICATION

• Petroleum Refineries
• Petrochemical Process
• Liquefied Gas Transfer
• High Pressure Water Injection Service
• High Pressure Boiler Feed
• Other High Pressure Services

RANGE

CAPACITY: 1500 m3/h
PRESSURES: up to 250 bar
TEMPERATURES: up to 450 °C

Standard: API 610

Pump type acc. to API610: BB4 - Single casing, radially split, multistage between-bearing pumps
Aggregate type: SBB4


APPLICATION

• High Pressure Boiler Feed
• Petroleum Refineries
• Petrochemical Process
• Chemical Industries
• Water Injection
• Descaling
• Desalination
• Other High Pressure Services

RANGE

CAPACITY: | 1500 m3/h
PRESSURES: up to 250 bar
TEMPERATURES: up to 200 °C

Standard: API 610

Pump type acc. to API610: BB3 - Axially split multistage between bearings pump
Aggregate type: SBB3


APPLICATION

• Petroleum Refineries
• Petrochemical Process
• High Pressure Boiler Feed
• Mine Dewatering
• Water Injection
• Descaling
• Desalination

RANGE

CAPACITY: 2000 m3/h
PRESSURES: up to 250 bar
TEMPERATURES: up to 200 °C

Standard: API 610

Pump type acc. to API610: BB2 - Radially split one-stage between-bearings pumps
Aggregate type: SSBB2


APPLICATION

• Refinery
  • Tower bottoms, process feed, column
  • reflux, process booster, circulation & pump around
• Power Plant
  • Boiler feed booster, boiler
  • circulation, ash sluice

RANGE

CAPACITY: 1800 m3/h
PRESSURES: up to 60 bar
TEMPERATURES: up to 450 °C

Standard: API 610

Pump type acc. to API610: BB2 - Radially split two-stage between-bearings pumps
Aggregate type: SDBB2


APPLICATION

• Refinery
  • Process feed
  • Reflux
  • Splitter bottoms
  • High-pressure process transfer
• Power Plant
  • Boiler feed booster

RANGE

CAPACITY: 5000 m3/h
PRESSURES: up to 80 bar
TEMPERATURES: up to 450 °C

Standard: API 610 or Manufacturer

Pump type acc. to API610: BB1 - Axially split one and two stage between bearings pumps
Aggregate type: SBB1


APPLICATION

• Industrial Process
• Pulp and Paper Industries
• Fire Fighting
• Water Intake and Transfer
• Primary Metals

RANGE

CAPACITY: 1500 m3/h
PRESSURES: up to 20 bar
TEMPERATURES: up to 150 °C

Standard: API 610
Type: SOH3
Vertical inline single stage overhung pumps with seperated bearing brackets

APPLICATION

• Petrochemical Plants
• Refineries
• Liquefied Gas Transfer

RANGE

CAPACITY: 3500 m3/h
PRESSURES: up to 50 bar
TEMPERATURES: up to 450 °C

Standard: API 610
Type: SOH2
Centerline mounted single stage overhung pump

APPLICATION

• General Industries
• Fire Fighting
• Water Processing
• Drainage Service

RANGE

CAPACITY: 4500 m3/h
PRESSURES: up to 50 bar
TEMPERATURES: from -100 to 450 °C

Standard: API 685
Type: SOHM

Sealless centrifugal horizontal magnetic drive pumps

APPLICATION

• Petroleum Refineries
• Petro chemical Process
• Liquefied Gas Transfer
• Other Chemical Industries
• Toxic Liquid Service

RANGE

CAPACITY: 1000 m3/h
PRESSURES: up to 20 bar
TEMPERATURES: up to 300 °C

Standard: ISO 5199

Wet pit, vertically suspended, single casing diffuser pumps with discharge through the column
Aggregate type: SVSI


APPLICATION

• General Industries
• Fire Fighting
• Water Processing
• Drainage Service

RANGE

CAPACITY: 1500 m3/h
PRESSURES: up to 16 bar
TEMPERATURES: up to 200 °C

Standard: ISO 5199

Axially split one and two stage between bearings pumps
Aggregate type: SBBI


APPLICATION

• Boosting
• Fire Fighting
• Water Processing
• Boiler Feed
• General Industriess

RANGE

CAPACITY: 1800 m3/h
PRESSURES: up to 60 bar
TEMPERATURES: up to 180 °C

Standard: ISO 2858/5199

Foot mounted single stage overhung pumps
Aggregate type: SOHI

APPLICATION

• Environmental Industries
• Foodstuffs Industries
• Petrochemical Process
• Petroleum Refineries
• Chemical Industries
• Other Various Industries

RANGE

CAPACITY: 5000 m3/h
PRESSURES: up to 25 bar
TEMPERATURES: from 70 to 300 °C

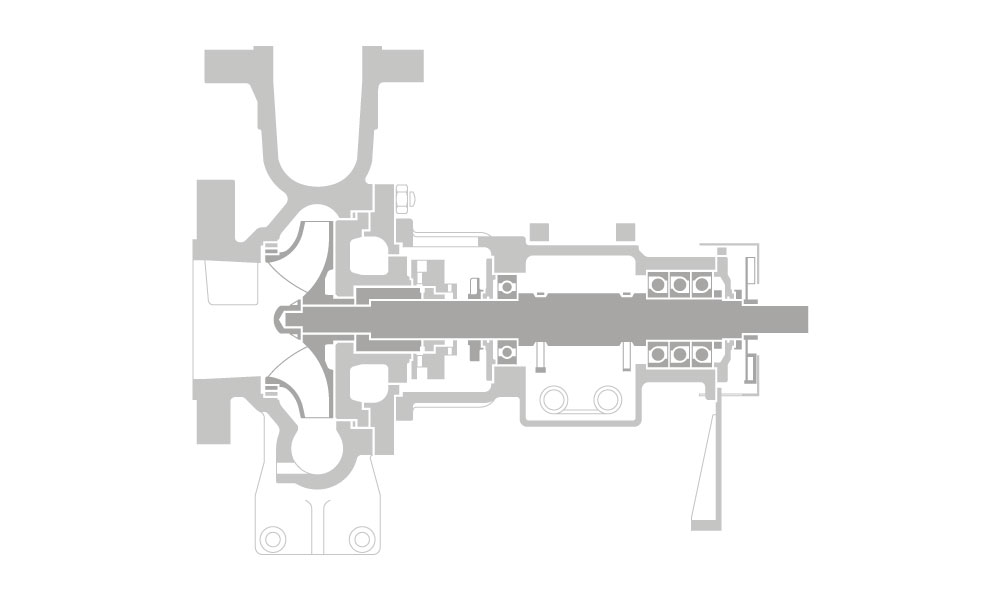

Standard: Manufacturer

Centrifugal horizontal pumps
Type: SOH

APPLICATION

• Forced Circulation Boilers
• High Pressure Hot Water Generation Plants

RANGE

CAPACITY:  2000 m3/h
PRESSURES: up to 120 bar
TEMPERATURES: up to 325 °C
